LED Mesh Screen - G6 LED Mesh Screen

Description

1.Light weight.

2.IP66 waterproof protection.

3.Low power consumption,low operation cost.

4.Transparent rate as 60%-90%, The mesh screen almost invisible in the sunlight, wont effect nature sunlight from outdoor nor beauty of architecture.

5.Super flexible of mesh screen, suitable to make any regular project and irregular project.

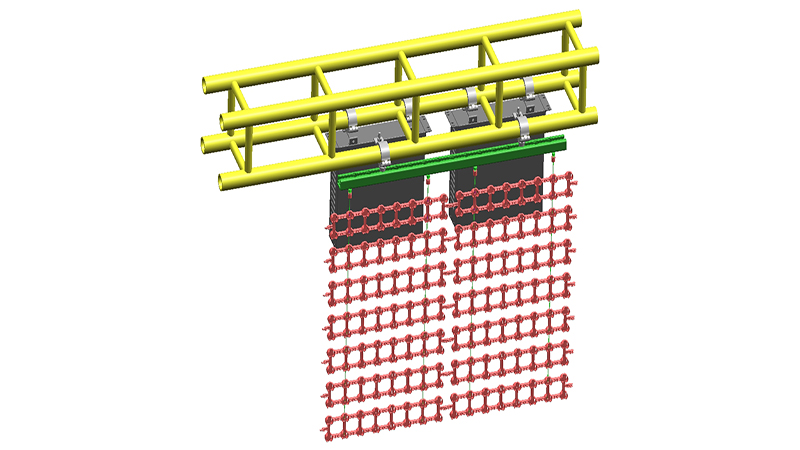

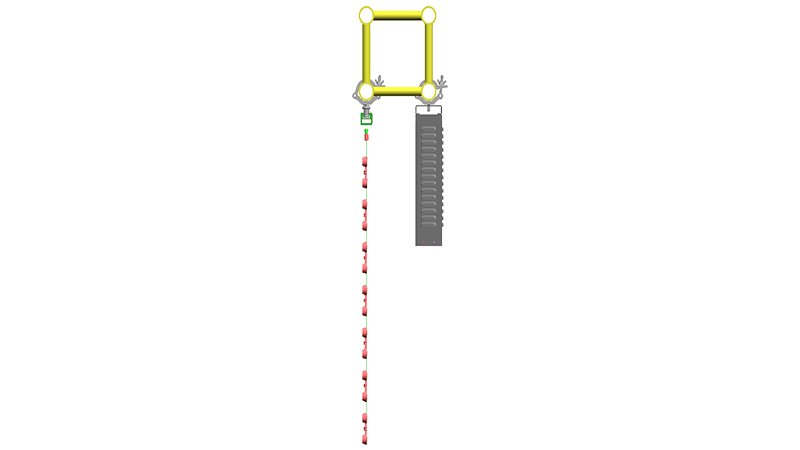

6.Simple and multiple installation design.

7.Anti-UV, LED shape won’t turn to yellow color in 3 years.

1.LED Mesh screen, Big LED Media Wall Facade, Sphere shape screen, Irregular sign etc.

2.LED Architecture Media Facade.

3.LED Billboard, LED Signage, LED Advertising display, LED Video Wall. etc .

Technical Parameter
Product Name:	G6-100mm LED Mesh
Pixels	6*SMD2727

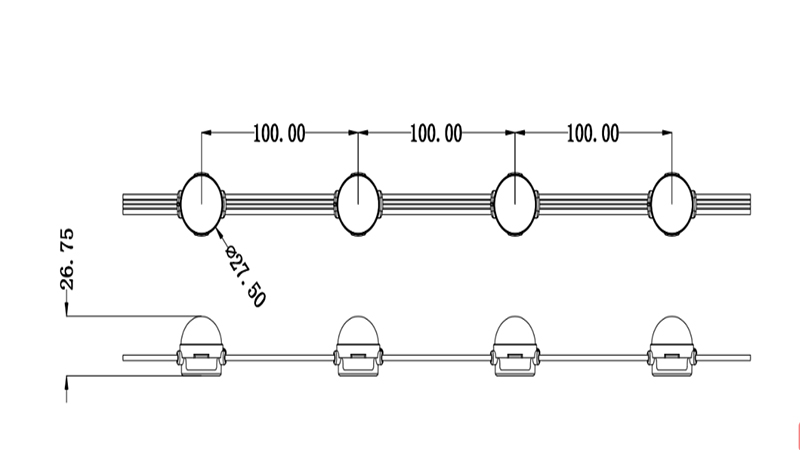

Pixel Pitch	P100mm
Resolution	100 Pixel/m²
Unite Size(L×H)	L:0.8m×H:Customized according to project
Resolution	L:8×H: Customized according to project
Working Voltage	DC24V
Transparent Rate	75%
Brightness	≥1300nit
Weight	1.5kg/m²
MAX Power	150w/m²
Average Power	45w/㎡
View Angle	140°/110°
Protection Level	IP67（Back、Front side）
