LED Media Facade Screen - P40-4R3G3B LED Media Facade Screen

Description

P40-4R3G3B LED Media Facade Screen is an all-weather outdoor products, the outdoor waterproof protection ability is over IP66.The box is made up by aluminum alloy and have independent heat dissipation function. Using high quality raw materials, product quality is stable and reliable. P40-4R3G3B LED Media Facade Screen could be applied to large outdoor LED display wall,LED Media Wall, LED strip curtain display, LED Grid screen, etc. display system.

The main body of LED Media Facade is made by aviation grade aluminum alloy material. The surface have high strength, high anticorrosion function after having anodic oxidation process.

P40-4R3G3B Outdoor LED Media Facade Screen is ventilated and pervious to light, there will not have the problem of light-leaking affect the contrast.

The LED Media Facade brightness is over 10,000NIT, could automatically adjust the brightness by the system and have ideal video effects during day and night.

Feature：

High Brightness：≥10000CD/M2.【for day and night application】

Light Weight：Square meter＜15KG.【save Steel Structure cost】

Low Power：Average Power/square meters120W.【Lower Running Cost】

High transparent Rate：4.Ventilate and transmitting. 【do not effect indoor Lighting and also do not effect Brightness】

Stable performance ability.

Certification：

Application：

1. LED display Media Curtain on Glass wall

2. LED advertising display Media Curtain on Public places

3. Large-scale LED display Media Curtain

4. LED Billboard on the top of building.

Product Video

Product Parameters

Part No.		C-Air40-10B
Strip Size		L1920W36H22(mm)
Cabinet Size		W1280H1920D114(mm)
Strip Qty/Cabinet		32
Materials		Aluminum + Black PC Cover （Color can be customized）
Pixel Composition		DIP346
Viewing Angle		H110°/V60°
Pixel pitch		40mm
Pixel Composition		4R3G3B
Pixel Resolution		625px/m²
Brightness	CREE	7500 NIT
	High brightness	11000 NIT
	Normal brightness	7500 NIT
Gray Grade		3*16Bit
Frame Frequency		30~60FPS
Refresh Frequency		3000HZ
Input Voltage		AC185--265V
Working Voltage		DC12V
Power consumption		Largest power≤380W/m²，Average power≤120W/m²
Best Viewing		50M--250M
Installation Height		40M--150M
Best Displaying Area		≥100㎡
Transparent rate		Ventilation, previous to light, no light-leaking
Weight		≤18KG/m²
Strip Arrange Direction		Transverse
Protection Grade		IP66
Working Temperature		-40℃ ~ 60℃
Working Humidity		10--90%RH
Driving Mode		Static
Communication Port		USB，RJ45
Pixel Failure Rate		＜1/10000
Average Failure Rate		≥10000hours
Installation Way		Lifting/Surface Mounting
Maintenance Mode		Back
Heat-Dissipating Method		Natural Heat Dissipating
Cabinet and Connection Way		Aluminum Alloy cabinets waterproof Connector
Fire rating		V1

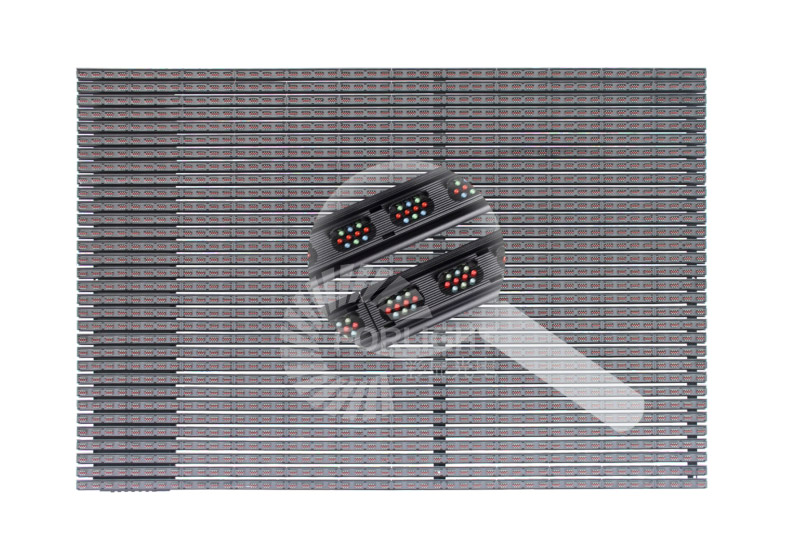

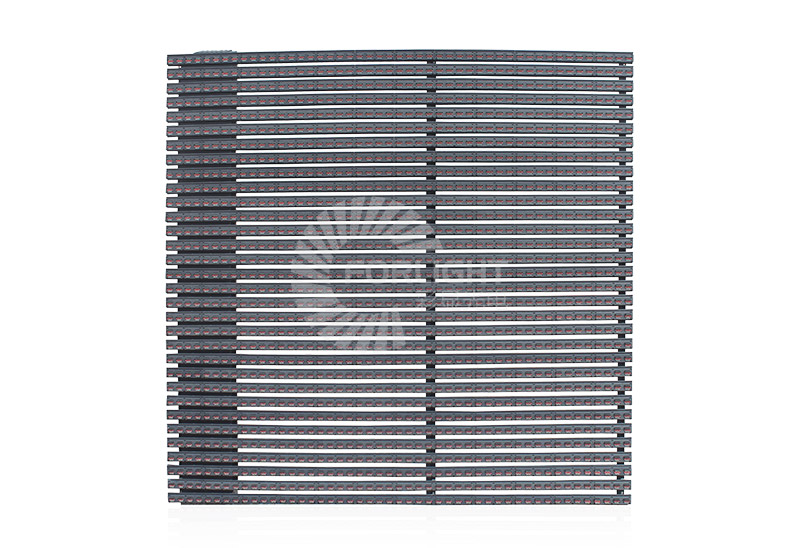

Product Details
